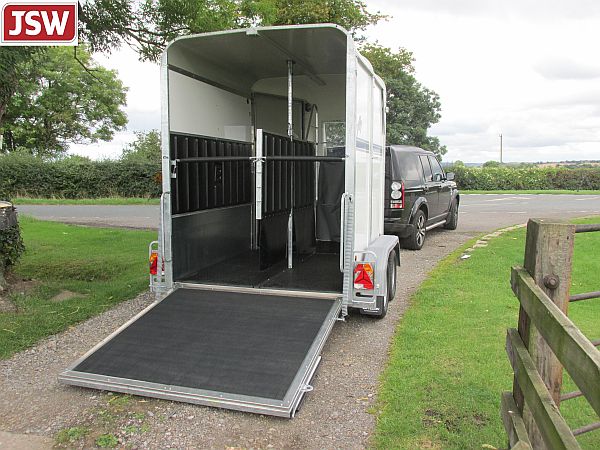

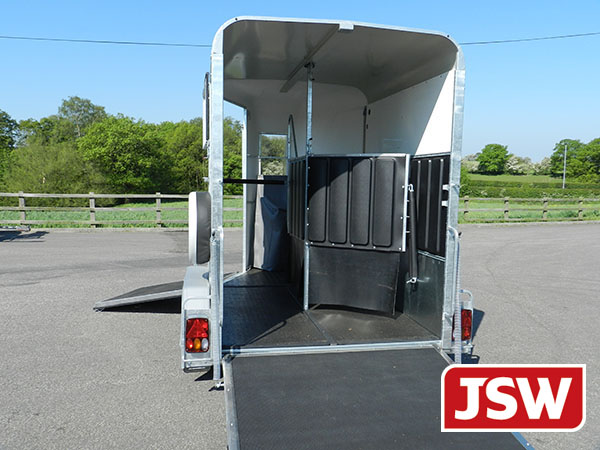

The centrally hinged division is very easy to operate and allows plenty of space for entry and exit. The Deauville has a double internal saddle rack and cover that can remain in place during unloading if required.

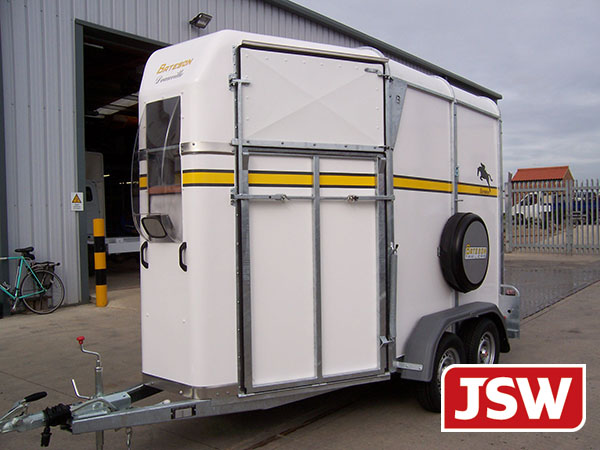

The larger front window incorporating a coupling mirror, combined with the white interior gives a very light and airy environment and allows a view of the horse during transit.

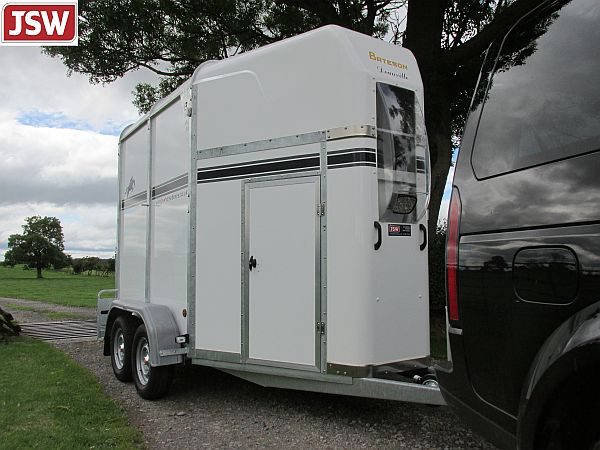

The trailer has a plastic and galvanised steel floor for total security with two 18mm thick, removable rubber stall mats. Full width front and rear bars are available for use with the division removed. The groom’s door can be fitted with an extra security bolt if a mare and foal are to be transported as an option.

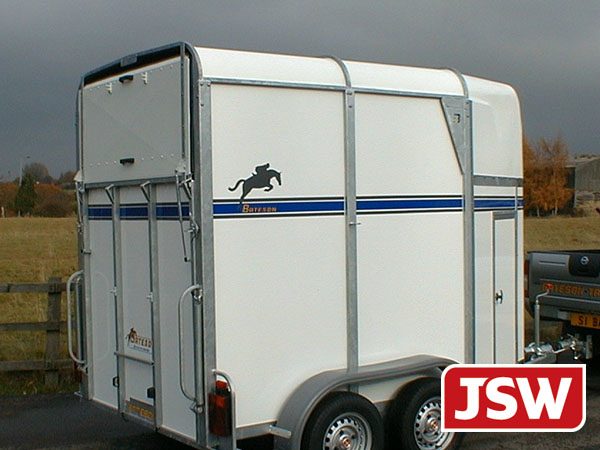

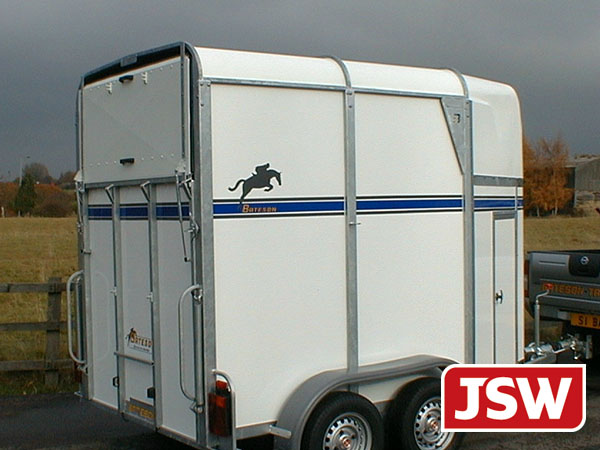

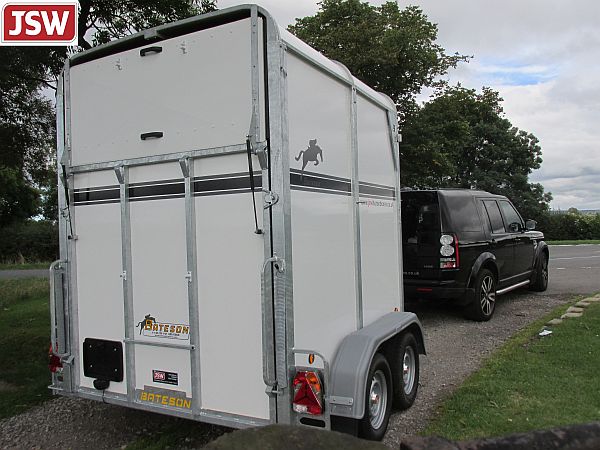

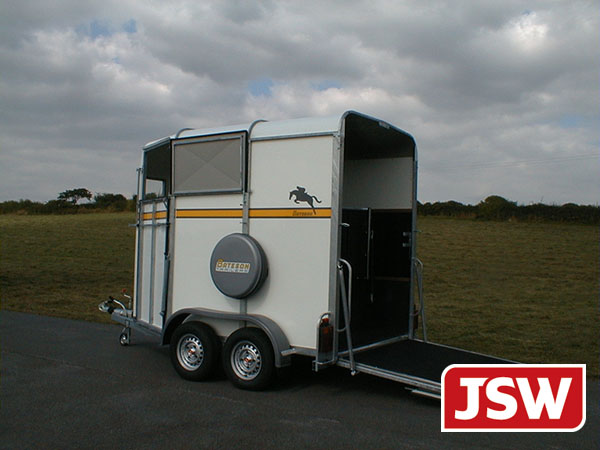

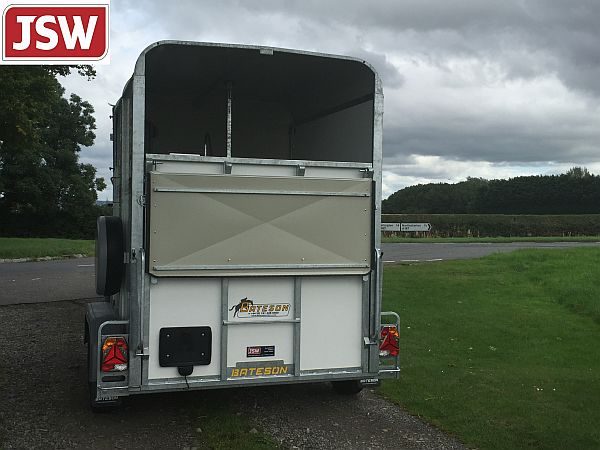

The standard rear ramp has a steel top door that lifts on gas struts; alternatively the trailer is available with the ‘Boston’ option of American doors with two hinged ventilator flaps and short pull out ramp.
Trailer weight and capacity (Kg)
|
|||
Gross weight | Unladen weight | Capacity | |
2300 | 860 | 1440 | |
Overall dimensions (mm)
|
|||
Length | Width | Height | |
4430 | 2180 | 2670 | |
Internal dimensions (mm)
|
|||
Length | Width | Height | Platform Height |
3190 | 1650 | 2220 | 400 |
Stall dimensions (mm)
|
|||
Length | Width | Height | |
1820 | 790 | ||
Additional information
|
|||
Tyre size | Tow ball height | ||
185 x 13 | 450 |
STANDARD FEATURES:
Optional extras:
*at owners discretion
